What is Cimatron?

Cimatron® offers outstanding advantages for tool and mold making to increase competitiveness across all manufacturing processes. Master high-quality tools of any complexity and size in record time. Increase your productivity, competitiveness and profit with a wide range of specialized tools for tool and die applications and CNC technologies from simple 2.5-axis milling and drilling to complex 5-axis machining.

Molde Design

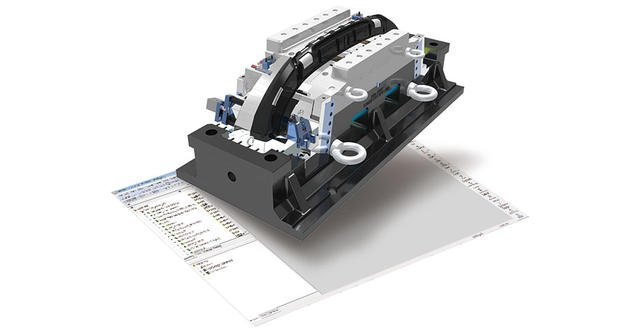

Cimatron® Mold is a single, integrated CAD/CAM software solution dedicated to mold making—from quoting, to design, to manufacturing. Deliver high-quality molds of any complexity and size in record time.

  • Data import

    Import your customer data and start working within seconds

  • Parting

    Use QuickSplit, the industry’s fastest and most accurate parting and cavity design tool

  • Preliminary mold design

    Create quick preliminary 3D designs to evaluate strategies and gain customer approval:

  • Core, cavity, and sliders

    Leverage automation to complete design of the mold’s main components rapidly:

Die Design

Cimatron® Die is a single, integrated CAD/CAM software solution dedicated to die making—from quoting, to design, to manufacturing high-quality dies of any complexity and size in record time.

  • Data import

    Import your customer data and start working within seconds

  • Quoting

    Win more business with quick and accurate cost estimates

  • Die layout

    Increase productivity with a dedicated strip design environment

  • Blank design and forming

    Create and edit forming shapes quickly and easily

Electrode Design

Cimatron® Electrode enables super-fast electrode design and manufacturing. Reduce electrode design time by up to 80%, eliminate errors, and increase productivity with lights-out machining.

  • Electrode Design

    Reduce design time by up to 80 percent

  • Electrode burning process

    Ensure an error-free burning process

  • Electrode manufacturing

    Create complete 2.5- to 5-axis machining procedures with the click of a button:



If you have any questions regarding Cimatron® solutions we are more than happy to help and assist you. Please contact our SimpaTec SARL team by phone: +33 389 81 96 64 or send an email to info-france(at)simpatec.com.
